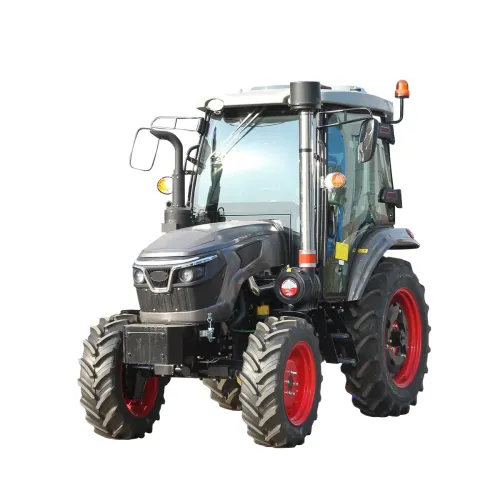

TT504 50 horsepower
TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower TT504 50 horsepower

TT504 50 horsepower

Product Code: TT504
Power: 36.5
Cylinder:
L*W*H: 3630*1550*2370

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
DIMENSION (L×W×H) 3630×1550×2370
MIN.GROUND CLEARANCE 355
MINIMUM OPERATING MASS 2010cabin
TREAD FRONT TREAD:1200(1000～1500)ADJUSTABLE
TYPE DRIVE TYPE (4×4)
WHEEL BASE 1860
kW 36.5
CLUTCH TYPE DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING）
ENGINE YUNNEI/YANGDONG 4 CYLINDER
RATED SPEED 2300
GEAR 8F+2R（OPTIONAL 8F+8R）
HYDRAULIC ADJUSTMENT MODE FORCED HYDRAULIC SYSTEM, POSITION CONTROL, FLOATING CONTROL
HYDRAULIC OUTPUT 1-WAY VALVE（OPTIONAL 2-WAY VALVE）
MAX.LIFTING FORCE AT FRAME CENTER ≥10.6
PTO SPEED 540/720
PTO TYPE 6 SPLINE, Φ35, ⅠTYPE(OPTION: 8 SPLINE)
RATED POWER ≥37.5
THREE POINT LINKAGE REAR, THREE-POINT SUSPENSION, CAT1
OPTIONAL TYRE (Ⅰ) 7.50-20/12.4-28
OPTIONAL TYRE (Ⅱ) 6.50-16/11.2-24
STANDARD TYRE SIZE (FRONT/ REAR) 7.50-16/11.2-28
