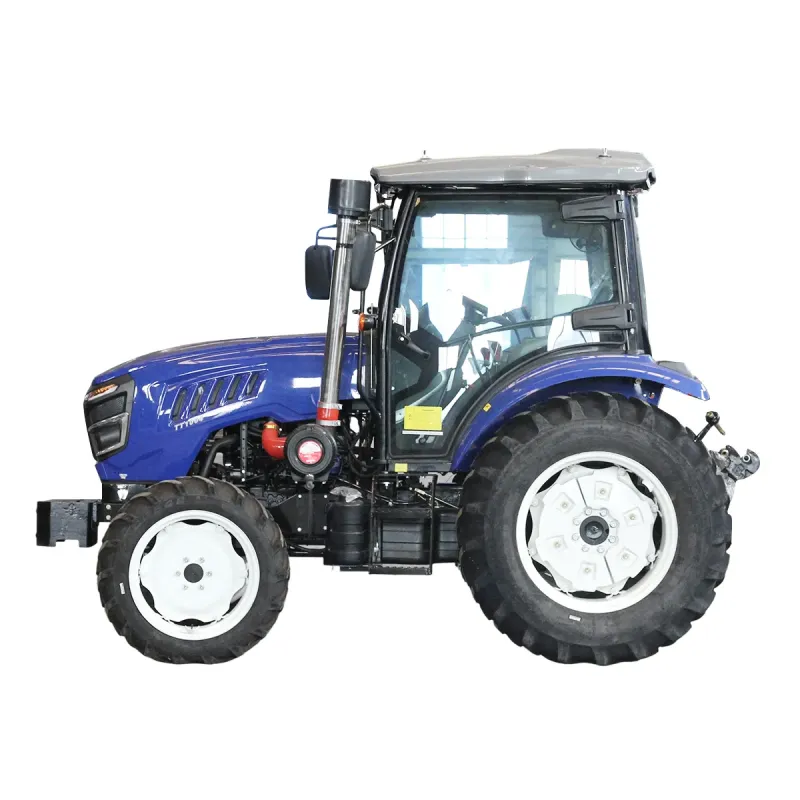

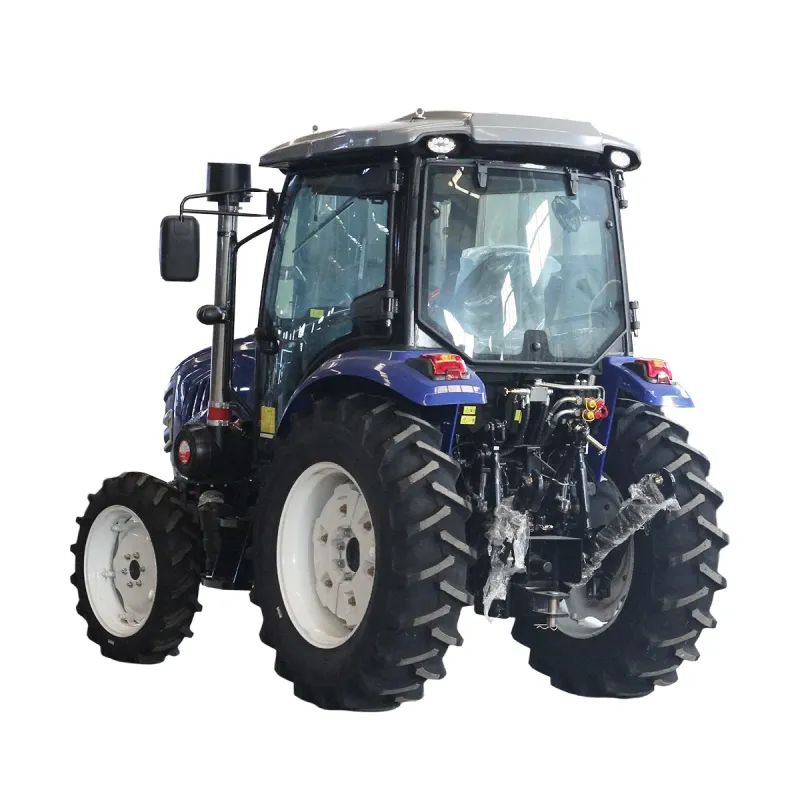

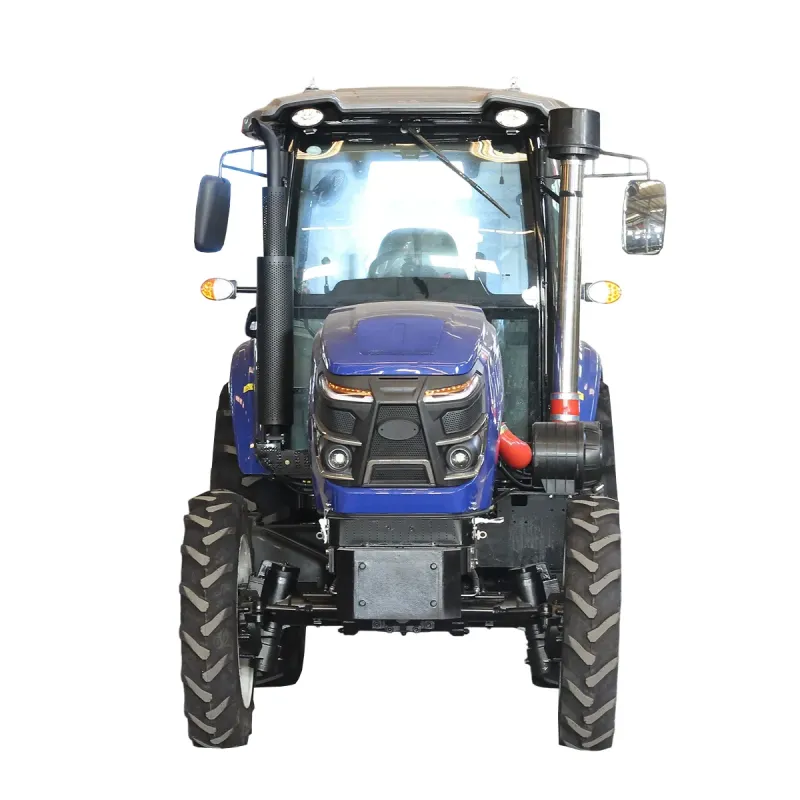

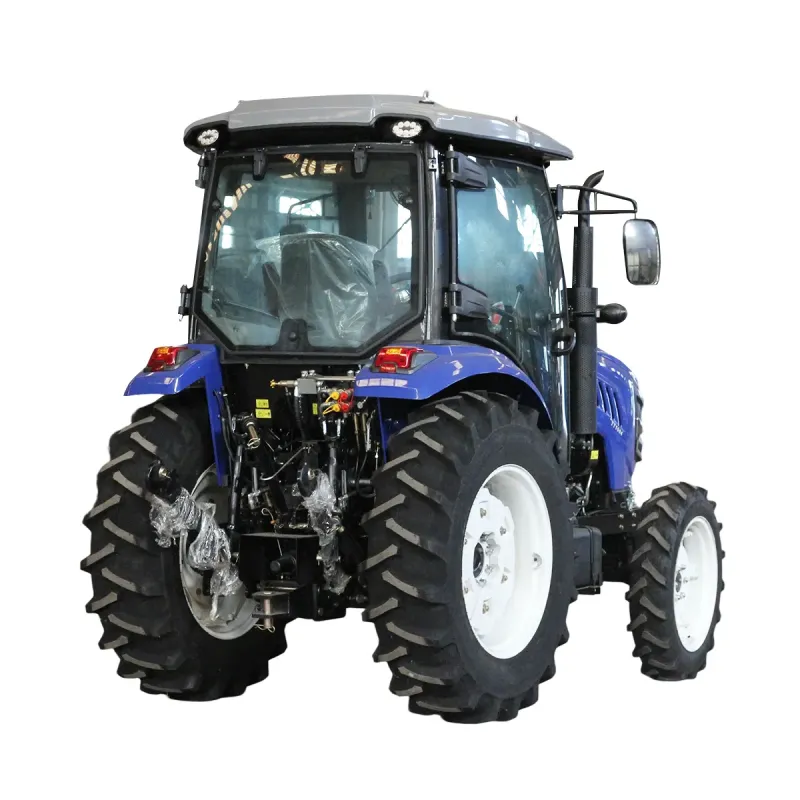

TT1004 100 horsepower
TT1004 100 horsepower TT1004 100 horsepower TT1004 100 horsepower TT1004 100 horsepower TT1004 100 horsepower

TT1004 100 horsepower

Product Code: TT1004
Power: 73.5
Cylinder:
L*W*H: 3945*1860*2730

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
DIMENSION (L×W×H) 3945*1860*2730
MIN.GROUND CLEARANCE 350
TREAD FRONT TREAD:1400(1200～1600)ADJUSTABLE REA TREAD:1620(1200～1600)ADJUSTABLE
TYPE DRIVE TYPE (4×4)
WEIGHT 2800
WHEEL BASE 2090
kW 73.5
CLUTH TYPE DRY-TYPE,DOUBLE-ACTING
ENGINE YUNNEI/YD 4 CYLINDER
RATED SPEED 2300
MODEL TT1004
GEAR 12F+12R
HYDRUALIC ADJUSTMENT MODE FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL
HYDRUALIC OUTPUT 2-WAY VALVE
MAX.LIFTING FORCE AT FRAME CENTER ≥15.9
PTO RATED POWER ≥356.3
PTO SPEED 540/720 540/1000
PTO TYPE 6PIN、Φ38、ⅠTYPE
THREE POINT LINKAGE REAR, THREE-POINT SUSPENSION ,CAT2"
NORM TYRE SIZE （FRONT/ TEAR） 8.3-24/14.9-30
