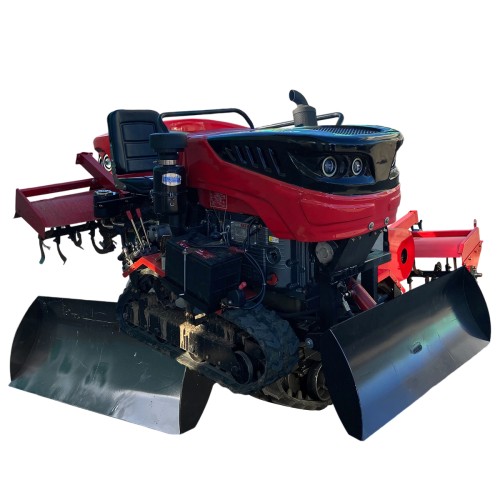

TS35
TS35

TS35

Product Code: TS35
Power: 23.58
Cylinder:
L*W*H: 2800*1200*1260

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
DIMENSION(L×W×H) 2800*1200*1260
MIN.GROUND CLEARANCE 200
Overall Weight 750
RATED POWER 23.58
TYPE DROUGHT
CLUTCH TYPE MECHANICAL
ENGINE QUANCHAI
RATED SPEED 2300
GEAR 6+2
HYDRAULIC ADJUSTMENT MODE FORCED HYDRAULIC SYSTEM
MAX.LIFTING FORCE AT FRAME CENTER 9.66
PTO RATED POWER 21.4
PTO SPEED 360
PTO TYPE GEAR
THREE POINT LINKAGE GEAR CONNECTION
CONTACT GROUND PRESSURE 挨地比压 38-45
TREAD SIZE 180*72*36
