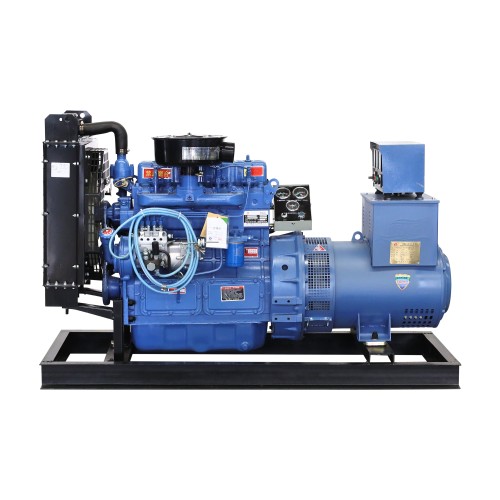

30KW-LN-30GF
30KW-LN-30GF

30KW-LN-30GF

Product Code: LN-30GF
Power: 30kw
Cylinder: 4-cylinder inline
L*W*H: 1650*610*1100

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
Cooling method Closed-loop fan water cooling
Excitation method Brushed excitation/Brushless self-excitation
External dimensions 1650×610×1100（mm）
Frequency settling time 3sec
Frequency volatility ≤0.25%
Fuel type Diesel fuel
RATED POWER 30kw
RATED SPEED 1500r/min
Rated Frequency 50Hz
Rated current 54A
Rated power factor COS=0.8 lag
Rated voltage 400V
Startup method DC12V electric motor starter
Steady-state frequency regulation ≤3%
Steady-state voltage regulation ≤±0.5%
Transient frequency regulation ≤10%
Transient voltage regulation ≤-15%/
Voltage fluctuation rate ≤0.5%
Voltage settling time ≤1.5sec
Voltage waveform distortion ≤8%
WEIGHT 600kg
Brand Leina Power
Cylinder bore/stroke 100*115mm
Diesel engine model ZH4100ZD
Engine power 33KW
Fuel consumption (100% load) 158g/kW·h
Fuel specification National standard 0# (light diesel oil)
Intake method Natural inhalation
Lubricating oil specifications Lubricating oil specifications: CD grade 15W-40
Number of cylinders/engine structure 4-cylinder inline
Speed regulation method Mechanical speed regulation
Generator core material All copper
Insulation class Class H
Protection rating IP21
Regulation method AVR (Automatic Voltage Regulator)
Wiring method Three-phase four-wire

LEINA

Serving customers in over 30 countries worldwide, they focus on providing reliable backup power, flexible OEM/ODM manufacturing, and professional customer service for modern industrial, construction, and agricultural needs.
