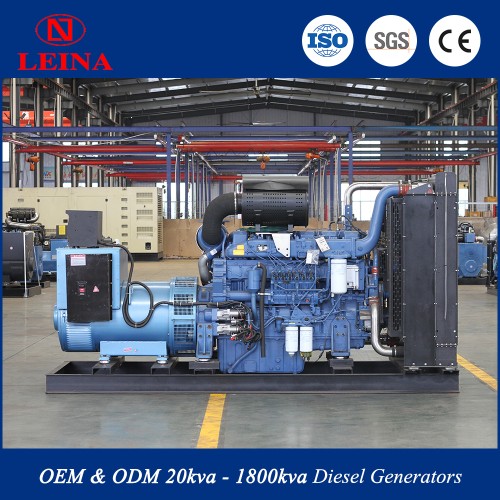

600KW-KMS-600GF
600KW-KMS-600GF

600KW-KMS-600GF

Product Code: KMS-600GF
Power: 600KW/750KVA
Cylinder: 6-cylinder/inline
L*W*H: 3750*1450*1900

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
Cooling method Closed-loop water cooling
External dimensions 3750×1450×1900（L×W×H mm）
Fuel grade (Standard) 0# light diesel oil (at room temperature)
Output current 1080A
Output voltage 400V/230V
Power factor COSΦ=0.8 (Lag)
RATED SPEED 1500rpm
Rated Frequency 50Hz
Startup method DC24V electric starter
Unit power/capacity 600KW/750KVA
Unit weight 4300kg
Air Intake Method TCI
Bore stroke 152×180mm
Brand/Origin Yuchai
Compression Ratio 14：1
Diesel engine model YC6TD900-D31
Engine Oil Capacity 55L
Exhaust emission standards China II
Fuel System EUP
Fuel consumption (100% load) ≤195 g/（kW·h）
Interface Size SAE1# 14
Maximum power 665KW
Noise Level ≤100 Lp dB(A)
Number of cylinders/cylinder block structure 6-cylinder/inline
Oil-to-Fuel Ratio ≤0.1%
Speed adjustment method Electronic speed control
Total displacement 19.60L
Adjustment method AVR(Automatic voltage regulator)
Brands Stanford
Excitation method Brushless self-excitation
Insulation class H-class
Model STF600
Protection level IP22
Rated (power/capacity) 600KW/750KVA
Wiring method Three-phase four-wire, Y-connection method

LEINA

Serving customers in over 30 countries worldwide, they focus on providing reliable backup power, flexible OEM/ODM manufacturing, and professional customer service for modern industrial, construction, and agricultural needs.
