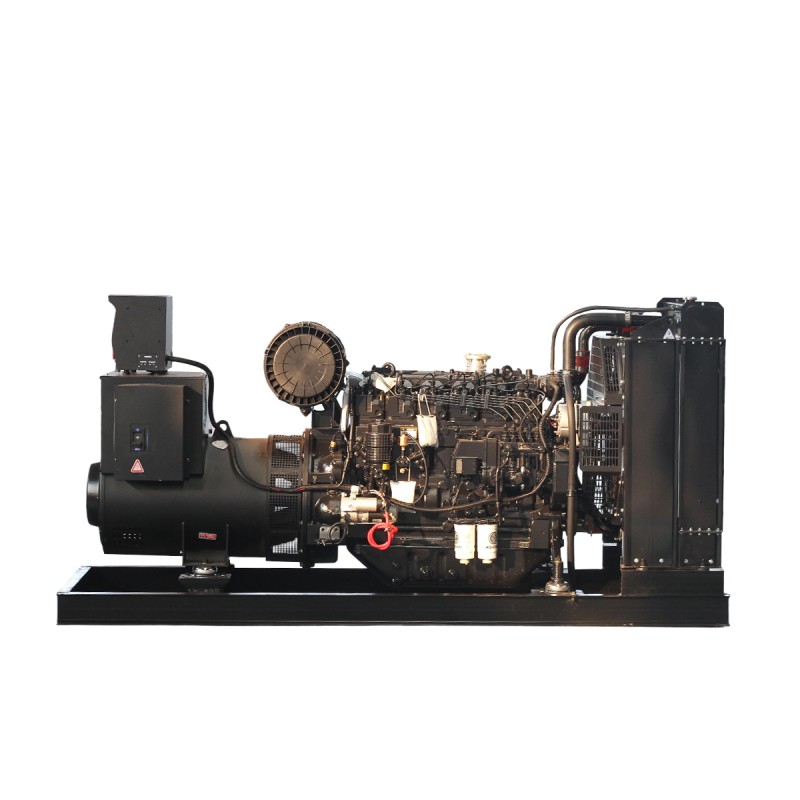

200KW-KMS-200GF
200KW-KMS-200GF

200KW-KMS-200GF

Product Code: KMS-200GF
Power: 200KW/250KVA
Cylinder: 6-cylinder/inline
L*W*H: 2750*1050*1800

LET'S TALK

We're here to answer your questions and listen to your suggestions.

∨
  • 150kw-WEICHAIKMS-150GF
  • 200KW-KMS-200GF
  • 300kw-YUCHA-IKMS-300GF
  • 30KW-LN-30GF
  • 500kw-Cummins-KMS-500GF
  • 50kw-LEINA-50GF
  • 600KW-KMS-600GF
  • 800kw-Cummins-KMS-800GF
  • LN300
  • LN400
  • LN418(308KW)
  • LN500
  • LN518(308KW)
  • LN600
  • LN618(308KW)
  • LN700
  • LN718(308KW)
  • LN818(308KW)
  • LN918(308KW)
  • LNP10(258KW)
  • R6105AZLD(121KW)
  • TS25
  • TS35
  • TS50
  • TS80
  • TT1004 100 horsepower
  • TT1504 150 horsepower
  • TT254 25 horsepower
  • TT504 50 horsepower
  • ZH4100D(33KW)
  • ZH4105ZD(56KW)

FEATURES

Top Brands Such As Toyota, Clark, Doosan, LiftKing, And Manitou. View Our Full Product Line & Request A Quote Online!

Machine Chart
Cooling method Closed-loop water cooling
External dimensions 2750×1050×1800（L×W×H mm）
Fuel grade (Standard) 0# light diesel oil (at room temperature)
Output current 360A
Output voltage 415V
Power factor COSΦ=0.8 (Lag)
RATED SPEED 1500rpm
Rated Frequency 50Hz
Startup method DC24V electric starter
Unit power/capacity 200KW/250KVA
Unit weight 2100kg
Bore stroke 126×130mm
Brand/Origin Weichai
Diesel engine model WP10D238E200
Exhaust emission standards China II
Fuel consumption (100% load) 215g/kW•h
Maximum power 238KW
Number of cylinders/cylinder block structure 6-cylinder/inline
Speed adjustment method Electronic speed control
Adjustment method AVR(Automatic voltage regulator)
Excitation method Brushless self-excitation
Generator Brands Stanford
Generator Model STF200
Insulation class H-class
Protection level IP22
Rated (power/capacity) 200KW/250KVA
Wiring method Three-phase four-wire, Y-connection method
